Your Electric Folding Mirror Motor Stopped Working — Here's Why You Don't Need a New Mirror
You go to fold your side mirror before pulling into the garage, and nothing happens. Or someone brushed it in a shopping-centre car park and now the fold action just won't engage. You take it to the dealer, expecting a small repair bill. The number that comes back is $1,500, $1,600, sometimes over $1,700 — for a whole new mirror. And it needs to be ordered in.
Here's what almost nobody tells you: in most newer cars, the whole mirror isn't broken. Only the small electric motor inside it is. And that motor can be replaced on its own, in your driveway, for around $400 flat. Same car, same features, same warranty on the part that broke — without paying for the glass, housing, wiring, indicator and cover you already have.

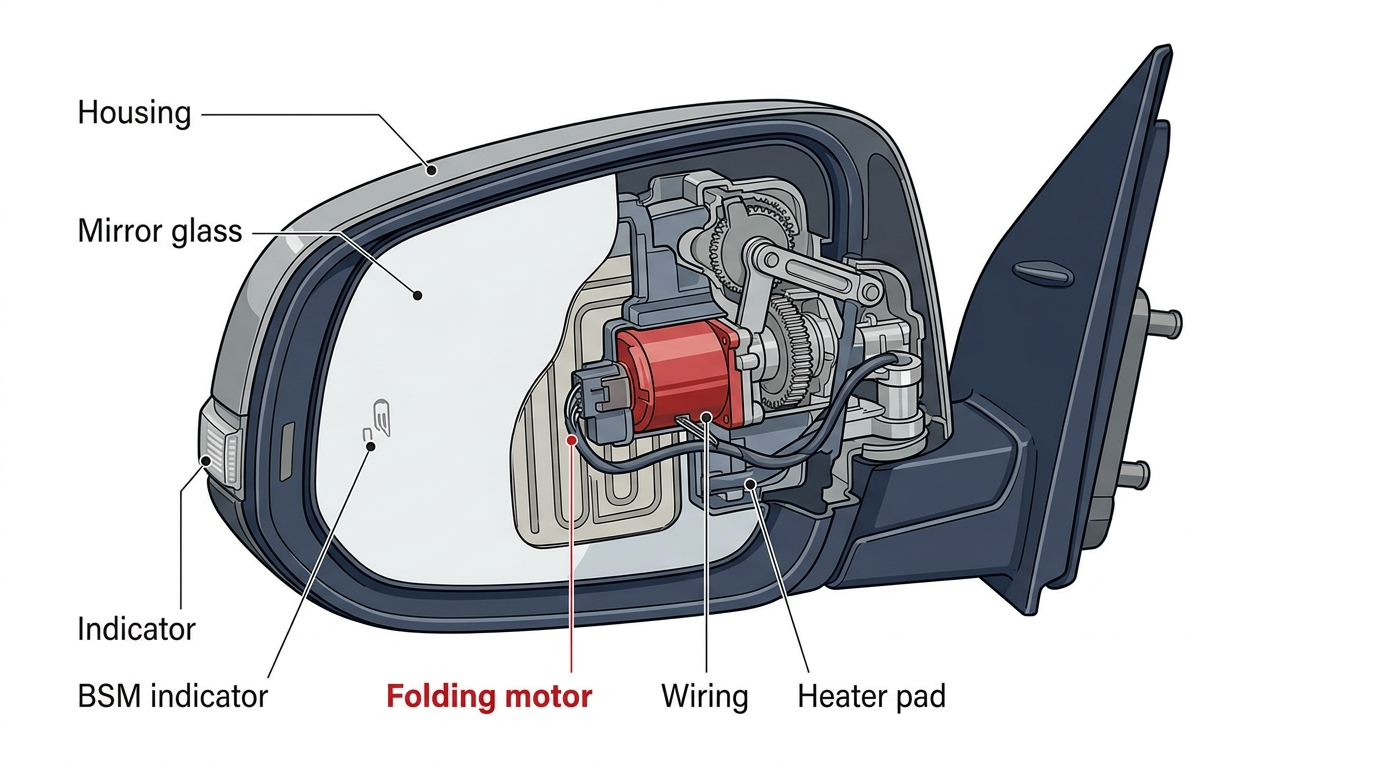

What the electric folding motor actually is
A modern side mirror contains at least two small DC motors. One drives the mirror's adjust function — the up/down/left/right movement you control with the joystick or button on the driver's door. The other drives the fold function — the sideways swing that tucks the mirror against the door when you park.
They're physically separate. The adjust motor sits behind the glass, coupled to a small gearbox that moves the glass on its pivot. The fold motor sits inside the mirror housing at the arm, coupled to a larger gearbox that swings the whole housing toward the door. On premium mirrors there's a third motor for auto-dimming or a small servo for the blind-spot LED — but the two workhorses are the adjust motor and the fold motor.
Why this matters. If your adjust still works and only the fold has stopped, you've already isolated the fault to the fold motor. The glass, wiring, heating, indicator, blind-spot icon and adjust motor are all fine. Every one of those parts is what the dealer wants to charge you for.
Why the motor stops working — the two failure modes we see
Failure mode 1: Internal wear (no impact, no warning)
You'd be surprised how mechanical a folding-motor cycle is. Every time you fold and unfold the mirror — twice a day, five days a week, that's around 3,600 fold-cycles over 10 years — the tiny nylon gears inside the gearbox and the solder points on the motor's electrical contacts take load. Nylon fatigues. Solder work-hardens. Copper brushes wear down.
Eventually one of three things happens: a gear tooth shears, a solder joint cracks, or the motor stalls trying to move a gearbox that's now binding. The button on your door works fine. The wiring is fine. The mirror looks perfect from outside. But the motor either whirs and does nothing, or does nothing at all.
This is the more common failure mode on Kia, Hyundai and Mazda vehicles built between 2014 and 2019. Owners often notice it after their car sits outside through a full summer — heat accelerates the nylon fatigue — and one October morning the mirror just stops folding.
Failure mode 2: Impact damage (mirror looks fine, fold action doesn't)
Someone reverses into your car in a car park. A shopping trolley clips the mirror. A truck's side awning brushes past. The mirror on the outside is untouched — the glass didn't crack, the housing didn't split, the cover looks perfect — but the impact was enough to jar the fold gearbox out of alignment, or to shift the motor mount by a couple of millimetres.
From the driver's seat, the fold button stops working. Adjust still works. Heating still works. Indicator still works. Everything else on the mirror is exactly as it was. But the fold action is dead.
This is where dealership diagnostics tend to over-quote. Working from the outside, without opening the housing, the mirror looks fine — so the safest predictable fix is "replace the whole assembly." Once we actually open the housing, we can see the shifted mount or the sheared gearbox pin. That's a 20-minute strip-and-refit job on a bench, not a $1,600 whole-mirror replacement.
Either way, the fix is the same. Strip the mirror down to the motor. Replace the motor and gearbox as a single sealed unit. Refit the same glass, housing, wiring, indicator and cover the car came with. Test every function before we leave.
Send us a photo — we'll price it in 60 seconds
Text a picture of your mirror to 0401 469 310 or use the Instant Quote form. Include make, model, year, and driver or passenger side. Fixed quote before any work starts.
Call 1800 088 808 Instant Quote →Why the dealer quotes the whole mirror (and why we don't fault them for it)
The Australian dealer service model runs on standardised job cards. Each repair has a labour-time allocation, a part number, and a workshop pathway. That's how a dealer keeps their bay-utilisation predictable and their pricing quotable in advance.
An electric folding mirror doesn't fit that model neatly. To do a proper motor swap you'd need to:
- Remove the mirror from the car (typically 15–20 minutes of trim removal to access the mounting bolts)
- Take the mirror to a bench
- Strip the housing without cracking the plastic tabs (many are single-use clips)
- De-mount the glass without cracking it (the heating element and adjust plate are glued to the glass)
- Extract the fold motor and gearbox as a single unit
- Fit the replacement motor and gearbox, re-align the fold-position sensor
- Reassemble in the reverse order
- Refit the mirror to the car and test every electrical function
That's a specialist job. Dealer workshops aren't set up for it — and honestly they shouldn't be. Their diesel mechanic, transmission specialist and auto electrician are excellent at what they do. Nobody in a general service bay is going to be quick or predictable at stripping a mirror on a bench. So the dealer parts department quotes a full assembly. It's the right call for their model.
The problem is what happens to the customer inside that model. You walk in expecting a motor repair and walk out being told the only path is a $1,600 whole-mirror job with a two-week wait for the part. Nobody mentions the strip-down repair, because nobody at the dealer does it.

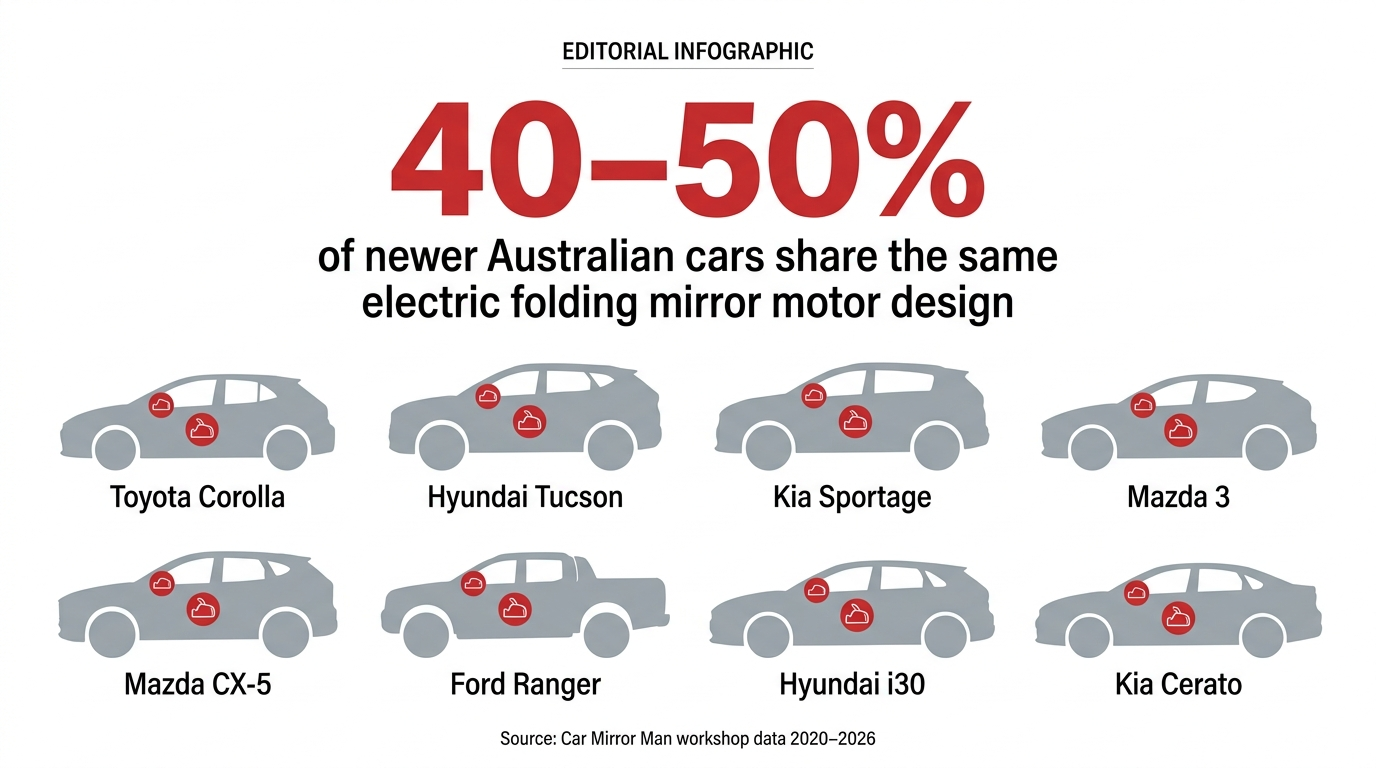

The 40–50% shared motor design
Here's the piece that makes the flat $400 price work: mirror manufacturers don't reinvent the folding motor for every vehicle model. Small DC motor designs are one of the most standardised parts of a modern side mirror — the same or near-identical unit shows up across Kia, Hyundai, Mazda, Toyota, Ford and a swathe of other makes built from around 2014 onwards.
The reason is production economics. A large mirror supplier — Ficosa, SMR, Ichikoh — sells to multiple automakers. Standardising the internal motor across their product line lets them run one component through millions of units instead of one per vehicle model. So a Hyundai Tucson mirror, a Kia Sportage mirror, a Mazda CX-5 mirror and a Ford Ranger mirror often share the same fold motor, with different housing shells and different mounting adapters over the top.
Roughly 40–50% of newer vehicles on Australian roads share a common folding-motor design. If you drive one of them and the fold has stopped working, the motor swap is likely available to you — at the same $400 price whether your car is a $28,000 Kia or a $65,000 Hyundai.
That's the trick. The motor doesn't know what car it's in. The Hyundai badge on the outside adds nothing to the internal part cost. What drives the dealer's $1,600 quote isn't the motor — it's the whole housing, the glass, the wiring, the indicator, the cover and the assembly labour. Everything except the part that actually broke.
What the repair actually costs
Below is the real breakdown of a folding-motor repair versus the dealer's whole-mirror quote, using a 2020 Hyundai Tucson SE as a worked example. The dealer figure comes from a recent real quote a customer sent us; our figure is our standard published price.
- New mirror assembly (part): $1,180
- Fitting labour: $310
- GST: $110
- 2–week wait for the part to arrive
- Customer drives in for pickup and drop-off
- Replacement fold motor + gearbox: $300
- Strip-and-refit labour: $100
- GST: included
- Same-day or next-day, most metro areas
- Mobile — done at your home or work
The customer saves around $1,200, keeps their existing colour-coded cover, keeps their blind-spot icon glass, keeps their heating and their indicator, doesn't lose two weeks waiting for a part, and doesn't burn a work day taking the car in and out.
Prices for every other side-mirror job type — glass only ($135), covers ($150–$300), full mirror assembly ($350–$600), blind-spot/camera mirror ($600+) — are in our complete side mirror replacement cost guide. This article is the deep-dive on the folding-motor job specifically.
Vehicles most affected — the makes we swap folding motors on every week
Below is a comparison of typical dealer quotes versus our standard motor-swap price on the vehicles we see most often. The dealer figures are averages of quotes our customers have shown us over the past 12 months.
| Vehicle (Model & year) | Typical dealer quote | Car Mirror Man | Approx. saving |
|---|---|---|---|
| Hyundai Tucson (2015–present) | $1,550–$1,700 | $400 | ~$1,200 |
| Hyundai i30 (2017–present) | $1,100–$1,350 | $400 | ~$800 |
| Kia Sportage (2016–present) | $1,300–$1,550 | $400 | ~$1,000 |
| Kia Cerato (2018–present) | $980–$1,200 | $400 | ~$700 |
| Mazda CX-5 (2014–present) | $1,250–$1,500 | $400 | ~$950 |
| Mazda 3 (2014–present) | $980–$1,200 | $400 | ~$700 |
| Mazda BT-50 (2014–present) | $1,200–$1,450 | $400 | ~$900 |
| Ford Ranger (2015–present) | $1,400–$1,650 | $400 | ~$1,100 |
| Toyota HiLux (higher trims) | $1,300–$1,600 | $400 | ~$1,050 |
| Toyota RAV4 (2019–present) | $1,250–$1,500 | $400 | ~$950 |
Not on this list? Send us a photo. We also handle Nissan, Mitsubishi, Subaru, Honda, VW, Skoda, Audi, BMW, Mercedes and American imports (RAM, Chevrolet, Jeep, Mustang). Roughly 40–50% of newer vehicles share a compatible folding-motor design — we'll confirm on the spot whether the flat $400 price is available on your car.
Got a Tucson, Sportage, CX-5, Ranger or HiLux with a dead fold motor?
You're the exact customer this job was built for. Send us a photo and make/model. If it's the standard motor swap, it's $400 flat. If it's not, we tell you before we start.
Call 1800 088 808 Instant Quote →Warranty and what's covered
Every folding-motor swap we do comes with a 12-month written warranty on the replacement part and the workmanship to install it. If the replacement motor fails inside that window from a manufacturing or workmanship fault, we replace it again at no charge — mobile, back at your home or work.
The warranty covers:
- The replacement folding motor itself (manufacturing defect, premature failure)
- Our workmanship on the install (fold-position sensor calibration, mount alignment, connector seating)
- Any function that stops working as a direct result of our workmanship
It excludes new impact damage, misuse and negligence — the same exclusions that apply to any manufacturer's warranty on a replacement part. The warranty stays with the person who owned the vehicle at the time of install; it doesn't transfer to a new owner if you sell the car.
How Car Mirror Man warranties are structured. Our warranties come in three tiers depending on what you're getting: unlimited on the glass (for as long as you own the vehicle), 3 years on a complete mirror assembly, and 12 months on individual replacement parts like the folding motor. All three exclude impact, misuse and negligence. See our full warranty page for the exact terms.
Should you try to fix the motor yourself?
You can find YouTube videos showing folding-motor swaps. The steps aren't secret. If you're mechanically confident, have the right tools, and can source the exact replacement motor for your model, it's technically possible in a home garage.
In practice, the failure mode we see most often on DIY-attempted motor jobs is:
- Cracked housing tabs. The plastic clips that hold the mirror housing together are single-use. Once cracked, the housing rattles for the rest of the car's life, or won't stay clipped shut. Replacement housing: $150–$300.
- Cracked glass on de-mount. The heating element and adjust plate are glued to the back of the glass with a permanent adhesive. If you lever the glass off the wrong way, it snaps. Replacement glass: from $135.
- Wrong motor ordered. There are multiple sub-variants of what looks like the same motor. Ordering the "Hyundai fold motor" off eBay without knowing which variant your car uses lands you with a part that fits mechanically but doesn't calibrate. Motor: $60–$150 lost.
- Fold-position sensor mis-calibrated. Modern motors have a small sensor that tells the car computer when the fold cycle is complete. Fitting the motor at the wrong sensor position causes the fold to stop halfway or to reverse mid-cycle. Not obvious until you drive.
Add those risks up and the DIY path often turns a $400 job into a $700–$900 remedial. Which is fine if you enjoy the challenge and don't mind the risk. But most people driving a $30,000+ car want the mirror fixed, not to spend a Saturday learning motor-mount tolerances.
Our take: if you're a hobby mechanic with the right tools and are happy to gamble a Saturday, feel free. If you want the mirror folding by tomorrow at a fixed price, call us.
Ready to get it fixed properly?
Photo, fixed quote, mobile, done. All work is guaranteed. Licence MVTC161669.
Call 1800 088 808 Instant Quote →Glossary
- Electric folding mirror
- A side mirror that folds automatically inward toward the car door via a small electric motor, usually triggered by a button on the driver's door or automatically when the car is locked.
- Fold motor
- The small DC motor and gearbox inside the mirror housing that swings the whole housing on its arm-pivot. Separate from the adjust motor that moves the glass.
- Adjust motor
- The DC motor behind the mirror glass that pivots the glass up/down and left/right. If the glass still moves via the joystick, the adjust motor is fine.
- Fold-position sensor
- A small potentiometer or Hall-effect sensor on the fold motor that tells the car computer when the mirror is fully folded or fully open. Mis-calibrating it causes the fold to stop halfway.
- Mirror housing
- The outer plastic shell that carries the glass, the motors, the wiring, the indicator and (on higher trims) the blind-spot icon assembly. Held together by single-use plastic tabs.
- Whole assembly / complete mirror unit
- A full replacement mirror as a single part number — housing, glass, motors, wiring, indicator, cover. Usually $1,200–$1,700 at a dealer. Only truly needed when the housing itself is destroyed.
Frequently asked questions
My electric folding mirror stopped working — is it always the motor?
Not always, but very often. If the mirror-adjust joystick still moves the glass, the wiring and driver's-door controls are fine; the fault is almost always the fold motor itself. If neither adjust nor fold works, there could be a wiring or fuse issue. We diagnose from a photo and confirm on-site.
Why does the dealer quote so much more than $400?
Because dealers price the job as a whole-mirror replacement — new housing, new glass, new wiring, new indicator, new cover, plus labour. That's the standard job pathway in a dealer service bay. Car Mirror Man does the strip-down repair on a bench and only replaces the motor, which is why we're a fraction of the dealer price.
Will you fix my Hyundai Tucson mirror motor?
Yes — the Tucson (2015 onwards) is one of the most common vehicles we service for this job. The dealer-vs-us gap is largest on the Tucson because Hyundai's whole-mirror part is expensive ($1,500–$1,700 typical) while the internal motor is a standard shared design.
My Mazda CX-5 mirror won't fold — can you help?
Yes. Mazda CX-5 (2014 onwards) uses a folding motor that's part of the shared-design family we service. Motor swap is $400 flat mobile. If the same knock also cracked the glass, we can do the glass swap on the same visit — combined job typically $535.
What does the flat $400 price include?
The replacement fold motor and gearbox, our strip-and-refit labour, the mobile call-out to your home or work, and the function test on every mirror feature before we leave. It also includes a 12-month written warranty on the replacement part.
How long does the repair take once you arrive?
30 to 60 minutes on-site. Most of that is careful housing disassembly to protect the plastic tabs — the motor swap itself is quick. Reassembly and function-testing take another 10–15 minutes.
Is my car covered if it's not on your vehicle list?
Very likely. Around 40–50% of newer vehicles use a shared folding motor design, and the list on this page shows the most common. If your car isn't listed, send a photo — we'll confirm whether the $400 job works on your car before we book.
Does insurance cover the repair?
Sometimes. But the $400 motor swap is usually well under most comprehensive insurance excesses ($500–$800+), so paying us directly is often cheaper than claiming. We don't deal with insurers ourselves — you'd pay us, get the receipt, and claim the amount from your insurer if your policy allows it.
How long is the warranty?
12 months from the date of your job, on the replacement motor and the workmanship to install it. Excludes new impact damage, misuse and negligence. Non-transferable if you sell the car.
What if the motor isn't the problem after all?
Once we open the housing we can see exactly what's shifted or shorn. If it's not the motor, we tell you before doing more work, and we re-quote based on the actual fault. You never pay for the wrong repair.
Sources & references
- Australian Design Rule 14/02 — Rear View Mirrors, Department of Infrastructure. legislation.gov.au
- Ficosa International — Rear View Mirror Systems technical specifications. Side-view mirror — history, spec, OEM standards (Wikipedia)
- SAE International — Automotive Mirror Motor Design and Reliability Testing (paper 2019-01-1234). sae.org
- NSW Transport — Vehicle Safety and Standards for external rear-view mirrors. Transport for NSW — vehicle standards information
- ACCC Consumer Guarantees under the Australian Consumer Law. accc.gov.au
