Mazda CX-3, CX-5 and CX-30 Mirror Folding Mechanism Repair
By Duber, The Car Mirror Man · Car Mirrors Australia · Updated October 2026 · 12 min read
Short answer: on the CX-3, CX-5 and CX-30, the internal folding mechanism is the part that most often fails, either after the mirror is knocked or slowly with age. In many cases we can replace just that mechanism and leave the glass, cover and wiring in place, instead of fitting a whole new mirror assembly. We quote the exact price per vehicle once we have seen a photo.
Anywhere in our five cities: we can repair a mirror motor or folding mechanism at your home or work — see our mobile mirror service.
A power-folding mirror is a small machine. It has a motor, a set of gears and a mount, all packed into the base that holds the mirror to the door. When one of those parts gives up, the mirror stops folding, or folds only halfway, or flops loose in your hand. The usual advice is to replace the whole mirror. For newer Mazda CX-3, CX-5 and CX-30 models, from about 2014 onwards, that is very often more than the car needs. In our own repair work we see the same pattern again and again: the glass is fine, the cover is fine, and only the internal folding mechanism is damaged. This guide explains why that happens, how to tell what has failed on your car, and what it means for the price.
The four parts, and what each one costs
A side mirror is a handful of separate components. Which one broke is what decides the price, not the badge on the car. A whole mirror is the last resort, not the starting point.
What is actually inside a power-folding mirror
Most people see a mirror as one object. It is really a stack of separate parts. The glass clips onto a backing plate and tilts on its own small motor. The cover is the painted shell. Behind both sits the base, which carries the folding mechanism: a geared electric motor that swings the whole head in towards the door and back out again [1].
That folding action exists for a good reason. A mirror that can tuck in is far less likely to be clipped by a passing car, a gate post or a garage wall [1]. The same feature is also why the base takes so much punishment. It is the pivot point for every knock the mirror receives.
The CX-5 has been on Australian roads since 2012 [2], the CX-3 since 2015 [3] and the CX-30 since 2019 [4]. The three share a family look and a similar approach to the mirrors, which is why the same fault turns up across all three.
Why the folding mechanism fails
There are two common routes to a dead power fold, and they look the same from the driver’s seat.
In many cases the damage stays inside the base. That matters, because it means the glass, the cover, the indicator and the wiring on the car can usually stay exactly where they are.
What you notice when it is the fold that has failed
You do not need tools to get a good idea of what has broken. Four quick checks at the kerb tell most of the story.
| What you notice | What it usually points to |
|---|---|
| The mirror will not fold in or out at all | Folding motor or gears, or a wiring fault in the base |
| It folds but makes a clicking or grinding noise | Worn or damaged gears in the folding mechanism |
| It flops loose or moves by hand with no resistance | The internal joint has been knocked out of position |
| The glass will not tilt but the mirror still folds | The glass motor, not the folding mechanism |
| Glass is cracked, mirror folds normally | Glass only, the cheapest job of all |
If the mirror folds normally and only the glass is cracked, you are looking at a glass replacement, which is the cheapest outcome of any mirror fault. If the fold itself has gone, the next question is whether the damage is limited to the folding mechanism or extends to the rest of the assembly.

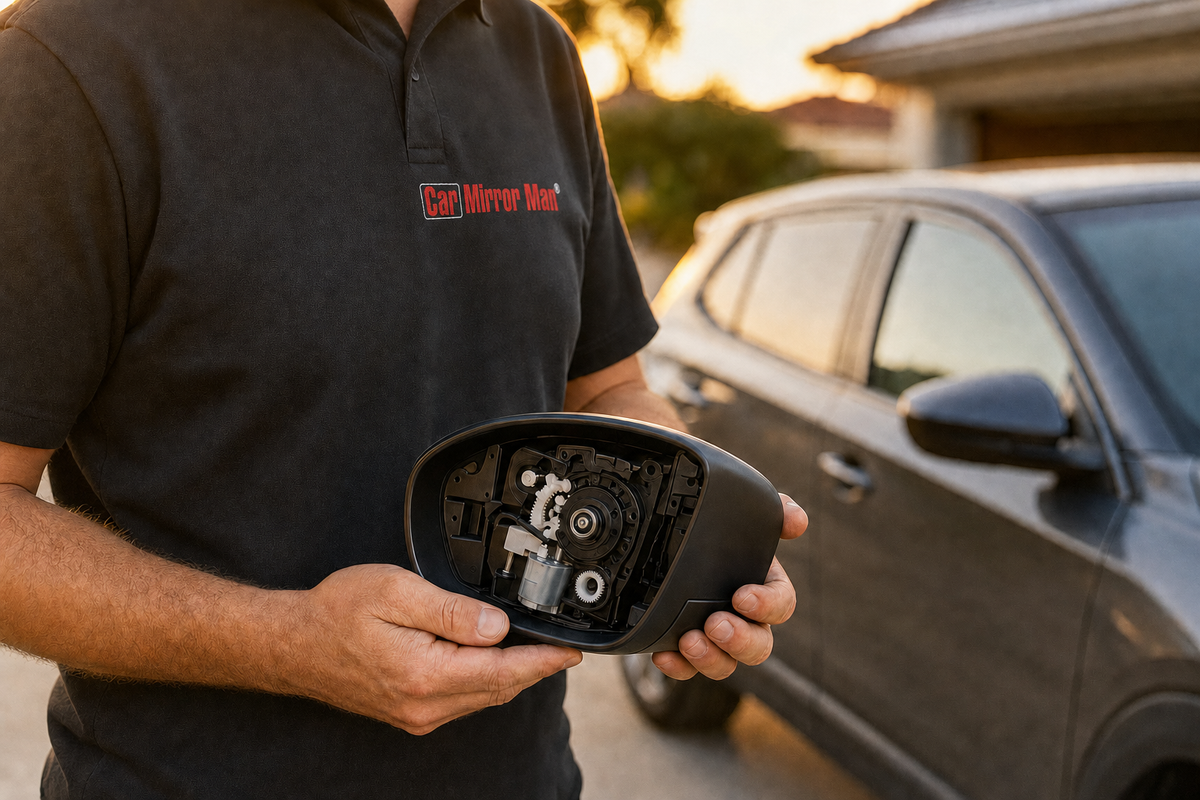

What we replace instead of the whole mirror
When the damage is limited to the folding mechanism, we replace that mechanism and refit the existing mirror head. The glass, the cover and the indicator stay on the car. That is the whole point of working part by part. A whole new assembly is the last resort, used only when replacing the separate parts would cost more than the full unit.
Include the car and the passenger-side or driver-side mirror. A short video of the mirror trying to fold helps us hear what is wrong.
From the photo and what you describe we can usually say whether it is glass, cover, folding mechanism or the whole base. Where we cannot be certain, we say so before any price is agreed.
You get the price for the part that has actually failed. No call-out fee, and nothing starts until you have said yes.
We replace the folding mechanism at your home or workplace, test the fold, the glass tilt and the indicator, and leave the mirror working.
What it costs, and where the saving comes from
Prices here follow the same bands as every other guide on this site. The folding mechanism itself is quoted per vehicle, because the part differs from one model and trim to the next. We do not give a fixed figure for it, and we would rather quote you the real number once we have seen your car.
| What broke | What it costs |
|---|---|
| Mirror glass only | From $135 fitted |
| Painted cover | $150 to $300 |
| Plain assembly, no electrics | $200 to $350 |
| Powered assembly | $350 to $500 |
| Folding mechanism, base, blind-spot or camera | Quoted per vehicle |
The saving comes from the size of the part. A folding mechanism is a smaller, cheaper component than the complete powered assembly it lives inside. When the glass and cover are sound, paying for a whole new assembly means paying for parts you did not need. That is true on a CX-3, a CX-5 or a CX-30.
CX-3, CX-5 or CX-30: does the model change anything
The three models are different sizes, so the mirror head and the base are different parts on each one. That is the real reason a price has to be quoted per vehicle. The way the fault shows up is much the same on all three: a mirror that will not fold, that grinds, or that moves loosely on its mount.
Trim level can matter as much as the model. A higher grade can add heating, an indicator in the housing or blind-spot monitoring. Those extras sit in the glass and the head, not in the folding base, so a fold fault on a high-spec car can still come down to the same internal mechanism. If a blind-spot warning is built into your mirror, tell us when you send the photo, so we can price the correct part.
If your car is a Mazda 2 or Mazda 3 instead, the same approach applies. See our Mazda 3 mirror page, or send a photo and we will quote directly.
Is a mirror that will not fold a problem on the road
A mirror that stays folded out is usually still legal to drive with, because you can see behind you. A mirror stuck folded in is different. If you cannot see properly to the rear, the mirror is not doing the job it is there for. Rear-vision mirrors on a vehicle are covered by Australian Design Rule 14/02 [5], and what matters in practice is that you have a clear view to the rear.
The practical advice is simple. If the mirror will not fold out, or it is loose, get it looked at before it affects your driving. If it only refuses to fold in, you can usually keep driving while you book the fix, though a wide mirror in a tight car park or a narrow garage is more likely to be hit again.
Paying yourself or claiming on insurance
A folding mechanism repair is usually well below a typical comprehensive excess, so for most people it makes more sense to pay directly than to claim. Claiming for a small repair may also affect your premium later. That balance between the excess and the repair cost is what a comprehensive policy is built around [6]. If you do want to claim, we give you an itemised invoice by part, which is what most insurers ask for.
We do not bill insurers directly. You pay us, then claim back from your insurer yourself if your policy covers it. Check your excess before you decide either way.
What our customers tell us
Most people expect a mirror job to be a hassle. The feedback we hear is the opposite.
Every review quoted on this site is a real, verified customer review. We do not write them and we do not edit them.
Warranty and what you can expect from any repair
Mirror glass carries an unlimited warranty. A replacement assembly carries three years and an individual replacement part carries twelve months. Under Australian consumer law, a repair must be carried out with due care and skill and be fit for its purpose [7], and the guarantee is the same whether the job is a glass swap or a fold mechanism.
The practical test is simple. After the repair, the mirror should fold in, fold out, tilt, and indicate if it has an indicator. We check every one of those before we leave.
Every band above comes from our national price guide, which is the single source of truth for what we charge. If you want the full breakdown by part and by vehicle, read our side mirror replacement cost guide.
We come to you in five cities
Every job is mobile. We drive to your home, your work or the car park the car is sitting in, and the mirror is fitted and tested before we leave.
Frequently asked questions
Can you replace just the folding mechanism on a Mazda CX-5?
In many cases, yes. When the glass, cover and wiring are sound and the fault is inside the base, we replace the internal folding mechanism and refit the existing mirror head. We confirm from your photo before we quote.
Does the same apply to the CX-3 and the CX-30?
Yes. The fault pattern is similar across all three models. The part itself is different for each, so we quote per vehicle.
How much does it cost?
The folding mechanism is quoted per vehicle. Glass on its own starts from $135 fitted, a cover is $150 to $300, a plain assembly is $200 to $350 and a powered assembly is $350 to $500. Send a photo for your exact price.
Why will my mirror not fold even though nothing hit it?
Gears and motors wear over time, and grit and moisture add friction. A mirror can stop folding with no impact at all.
My mirror makes a clicking or grinding noise when it folds. What does that mean?
It usually means damaged or worn gears in the folding mechanism. It is a good time to book a fix, because a worn mechanism can fail completely.
Can I keep driving with a mirror that will not fold?
If it stays folded out you can usually still see behind you. If it is stuck folded in, or loose, get it fixed first, because you need a clear rear view [5].
Do you come to me?
Yes. We are mobile in our five cities and fit at your home or workplace. There is no call-out fee.
How long does the repair take?
Most of our mirror jobs take 20 to 40 minutes on site. A folding mechanism can take a little longer, depending on the car, and we tell you when we quote.
Is a genuine part dearer than an aftermarket one?
Often, yes. Where both exist we quote both and let you choose.
What warranty do I get?
Mirror glass carries an unlimited warranty, an assembly three years and an individual part twelve months.
