Side Mirror Indicator Not Working? What It Actually Costs
By Duber, The Car Mirror Man · Car Mirrors Australia · Updated August 2026 · 13 min read
Short answer: the indicator strip in your mirror is a separate, replaceable component. On most vehicles it lives in the outer cover and comes out with the cover, which means a dead repeater almost never requires a new mirror assembly. Before anyone quotes you for one, the bulb or LED module, the connector and the door wiring all need eliminating — and any of the three is cheaper than the mirror.
In Sydney? We can replace an indicator repeater on its own at your home or work, anywhere across the metro — see our full Sydney mirror service.
Somewhere between about 2005 and now, the side repeater migrated from a little orange lozenge on the front guard into the mirror cover. It looks better and it is far more visible to the car beside you. It also means that when it stops working, a lot of people are told they need a whole new mirror. This guide explains what is actually in there, how the fault is traced, and what each outcome costs.
Where the indicator actually lives

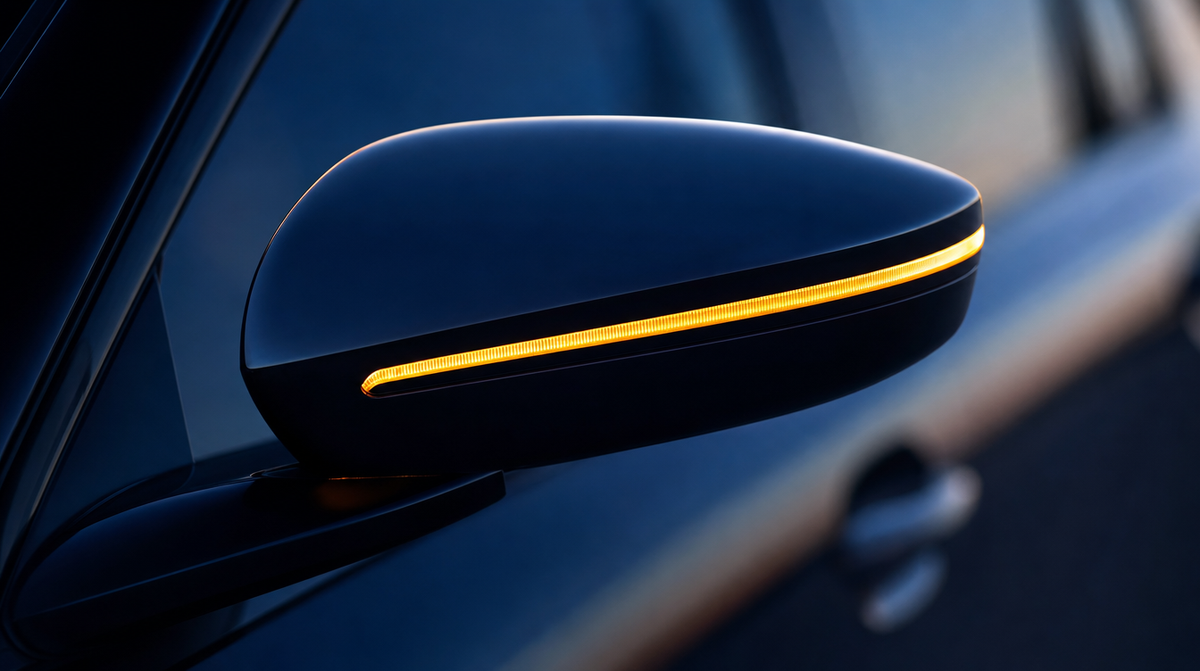

On a modern car the mirror repeater is a sealed strip — usually an LED array behind a clear or amber lens — moulded into the outer cover of the mirror. It is fed by a pair of wires that run down through the mirror arm and into the door loom, and from there back to the indicator stalk [18].
The important structural point is that the strip and the mirror glass have nothing to do with each other. They sit in different parts of the assembly, they are fed by different wires, and either can fail while the other works perfectly.
Why it counts as a real fault
It is easy to dismiss a dead mirror repeater because the main indicator at the front and back of the car is still flashing. Two reasons not to.
The first is legal. Lighting is on the annual safety inspection checklist alongside mirrors, brakes and tyres [6], and a vehicle that does not meet the standards can attract a defect notice [5]. A repeater fitted at the factory is expected to work.
The second is practical. The mirror repeater is the indicator a driver sitting in your blind spot can actually see. The front and rear indicators are, from that position, largely hidden by your own bodywork. It is the one that does the job in exactly the situation the indicator exists for.
One part, or the whole assembly?
This is the entire question, and the answer depends on how your vehicle was built.
Three of those four outcomes cost a fraction of a mirror assembly, which is why it is worth having someone actually look before accepting the fourth.
Four things that stop a repeater working
In roughly the order we find them.
LED arrays fail as a unit rather than dimming gracefully. One day it works, the next it does not. This is the most common cause.
A two-pin plug inside the housing. Water and vibration are its enemies, and a corroded pin looks exactly like a dead module.
The loom between the door and the body flexes every time the door opens. A broken core inside the rubber boot is common on older cars and entirely repairable.
The stalk, a relay or a fuse. If both mirrors stopped at once, start here, because it is almost certainly not either mirror.
The test that narrows it immediately
Stand outside the car with the ignition on and the indicator running, and check both sides.
| What you see | What it means |
|---|---|
| One mirror repeater out, everything else fine | The module, connector or door wiring on that side |
| Both mirror repeaters out | Upstream — stalk, relay or fuse. Not the mirrors |
| Repeater out and the front indicator hyper-flashing | A circuit fault, worth checking properly |
| Repeater flickers rather than flashing | A failing connection rather than a dead module |
| Repeater works but is dim | An ageing module, or moisture behind the lens |
| Works intermittently with door movement | Almost certainly the door loom |
That last row is the one people chase for months. If the fault comes and goes as the door opens and closes, the wiring in the flex boot is the place to look, not the mirror.
Moisture behind the lens
A repeater that has gone dim, patchy or foggy rather than fully dead is usually a sealing problem rather than an electrical one.
The strip is sealed at the factory, and that seal ages. Once moisture is inside, the LEDs dim, the lens clouds, and corrosion starts on the terminals. It is a slow failure, which is why it so often gets noticed only when someone else mentions it.
There is no repair for a wet module. It is replaced, and on most vehicles that is a modest part fitted in well under an hour.
Amber, clear and what is legal
Australian vehicles use amber for indicators front, side and rear. A clear lens is fine as long as the light emitted through it is amber [18].
What is not fine is a smoked or tinted repeater that materially dims the output, or a replacement that emits white or red. Lighting colour is one of the more clear-cut items on a safety inspection, and it is one of the easier things for an officer to notice from outside the car.
Does it affect the blind-spot warning?
No, and it is worth saying plainly because the two sit within centimetres of each other.
The blind-spot warning icon is a separate light inside the mirror glass, driven by radar sensors in the rear bumper [13]. The indicator repeater is in the cover and is driven by the indicator circuit. A dead repeater tells you nothing about the blind-spot system, and vice versa.
What each outcome costs
The spread is wide, which is exactly why diagnosis is worth the ten minutes.
| What is being replaced | What it covers | Price |
|---|---|---|
| Glass only | Correct ADR-compliant glass cut and fitted to your existing backing plate. | from $135 |
| Cover / housing | Outer cap swapped, glass and motor kept. Where the repeater lives on most cars. | $150–$300 |
| Full mirror, plain | Whole assembly, manual or basic powered mirror. | $200–$350 |
| Full mirror, powered | Electric adjust, power fold or integrated indicator. | $350–$500 |
| Blind-spot, camera or auto-dim | Mirrors carrying driver-assist electronics. | Quoted per vehicle |
Every band above comes from our national price guide, which is the single source of truth for what we charge. If you want the full breakdown by part and by vehicle, read our side mirror replacement cost guide.
A repeater module on its own, where the vehicle allows it, sits below the cover row. Send a photo and we will tell you which arrangement your car uses.
Why a photo answers most of this
From one clear photograph of the mirror we can usually see whether the repeater is a separate strip or moulded into the cover, whether the lens is clear or amber, whether there is a blind-spot icon in the glass, and whether the housing has been damaged.
That is four of the five things that determine the price, settled before anyone gets in a van. It is also why we do not quote a flat rate for “a mirror” — the same model in two trim levels can be two very different parts.
Can you do it yourself?
Where the repeater is a separate strip in the cover, it is not a difficult job in principle. The cover unclips, the strip unclips, the connector unplugs.
In practice, cover clips on a car more than a few years old are brittle, and a broken clip turns a cheap job into a cover replacement. The other complication is that many vehicles require the mirror glass to come out first to reach the cover clips, and removing mirror glass without cracking it takes a specific technique and a specific tool.
If you are going to try it, do it on a warm day. Cold plastic is what breaks.
How long a repeater job takes
Faster than most people expect, and always at your address.
| Job | Typical time on site |
|---|---|
| Repeater module only | 20 to 30 minutes |
| Cover with integrated repeater | About 30 minutes |
| Connector or wiring repair | 30 to 45 minutes |
| Full assembly | 45 to 60 minutes |
Why the repeater moved into the mirror
It is a genuinely good piece of design, and knowing why it is there explains why it matters when it stops.
Side repeaters used to sit on the front guard, roughly level with the front wheel. From the driver's seat of a car sitting alongside you, that position is often obscured by their own A-pillar or by the angle. Moving the repeater into the mirror puts it at eye height, further back, and directly in the field of view of exactly the driver who most needs to see it [18].
In other words, it is the indicator aimed at the blind spot. Which is why a dead one is a real fault rather than a cosmetic one, even though the front and rear indicators are still flashing.
LED versus bulb, and why failures look different
Older repeaters used a small filament bulb. Almost everything from the last fifteen years uses an LED array sealed into the strip.
If you have a partly-lit strip, that is diagnostic. Wiring faults are all-or-nothing. Segment failure is the module telling you it is on its way out.
Hyper-flashing and what it means
If your indicator suddenly starts flashing at roughly double speed, the car is telling you a lamp has failed on that side. On most vehicles that is a deliberate design feature rather than a fault.
The complication is that it does not tell you which lamp. On a car with a mirror repeater, a front indicator and a rear indicator on each side, hyper-flashing narrows it to three candidates and no further. Walking around the car with the indicator running is still the fastest way to find it.
It also frequently follows an aftermarket LED fit, because the replacement draws less current than the circuit expects and the car reads that as a failed lamp.
Water, and the slow version of this fault
Most repeater failures we see are not dramatic. They are a strip that has been dimming for a year.
The module is sealed at the factory and the seal ages. Once moisture is inside, the lens clouds from behind, the output drops, and corrosion starts on the terminals. Because it happens over months, the owner adapts and does not notice until somebody else mentions it.
There is no repair for a wet module, but there is a lesson: a cracked mirror cover alongside the repeater is what lets the water in on a lot of vehicles. Dealing with the cover early is what stops the repeater becoming the next problem.
What we bring, and what we do not touch
On a repeater job the work is deliberately narrow, and that is the point.
Where the repeater is a separate strip, the glass, the backing plate, the adjuster and the mounting are never disturbed. The cover comes off, the strip unclips, the new one goes in, the connector is seated and tested, and the cover goes back. Nothing else in the mirror is opened.
It matters because every component you open is a component that can be reassembled slightly wrong. The narrowest repair that solves the problem is almost always the most durable one.
What Sydney drivers tell us
A repeater is a narrow, quick repair when it is diagnosed properly.
Every review quoted on this site is a real, verified customer review. We do not write them and we do not edit them.
The short version
The indicator repeater is its own part. On most cars it lives in the cover, unclips from it, and is replaced without touching the glass, the motor or the housing. Both repeaters out at once means the fault is upstream and neither mirror is to blame. One out, flickering, or dimming means the module, the connector or the door loom — and all three are a long way below the price of an assembly.
Frequently asked questions
Do I need a new mirror if the indicator has stopped working?
Almost never. On most vehicles the repeater is a separate strip inside the outer cover and can be replaced on its own without touching the glass, the motor or the housing.
Both my mirror indicators stopped at the same time. What does that mean?
That the fault is upstream of the mirrors — the indicator stalk, a relay or a fuse. Two independent modules failing simultaneously is very unlikely.
My repeater flickers instead of flashing. What is that?
A failing connection rather than a dead module. The two usual candidates are the two-pin connector inside the housing and the wiring loom in the door hinge, which flexes every time the door opens.
Is a dead mirror indicator illegal?
Lighting is checked on the annual safety inspection, and a vehicle that does not meet the standards can attract a defect notice. A repeater fitted at the factory is expected to work.
Can the lens be clear instead of amber?
Yes, as long as the light emitted is amber. What is not acceptable is a smoked lens that dims the output, or a module emitting white or red.
Will a dead indicator affect my blind-spot warning?
No. The blind-spot icon is a separate light inside the mirror glass driven by radar in the rear bumper. The repeater is in the cover and runs off the indicator circuit.
How much does it cost?
It depends on how your car is built. A repeater module on its own is the lowest-cost outcome, a cover with an integrated repeater is $150 to $300, and a full assembly starts at $200. Send a photo for a fixed price.
How long does it take?
Usually 20 to 30 minutes for a module, about 30 for a cover, and 30 to 45 if there is a wiring repair involved. All done at your home, workplace or carpark.
